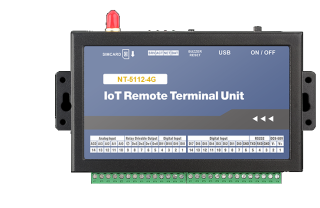

SMS Alarm Controller (NT-5112) RTU

System Fetures:-

  • Adopted highly integrated industrial 32-bit ARM MCU.
  • Reliable performance with built-in double watchdog, 24×7 operation.
  • With signal filtering mechanisms.
  • Network-reconnect and retransmission to ensure data accurately transmit.
  • Update RTC automatically or manually, clock source support Sms, NTP, CwtIO Server.
  • Can set multiple timers(second, minute, day, week, month) to execute actions, e.g. output, upload data, change setting.
  • Event-based linkage programming, e.g. alarm linkage output.
  • Provide configure software, visual programming, over 100 parameters can be set.
  • Inside temperature optional, can set high or low to alarm.
  • Optional inside battery that life is 8-20 hours, cellular module Intelligent sleep when power lost.

Introduction

NT5112 RTU with 12 DI, 4 DO, 4 AI, RS232standard electrical interface can connect various industrial equipment, such as PLC, meters, sensors, electrical switches. It monitors the industrial system real-time running status and data, as well as constructs the remote device to a proprietary central computer and mobile phones through the GSM/GPRS/3G/4G/Wi-Fi/Ethernet communication network. It efficiently acquires the remote equipment operating parameters and process management, can be widely used in industrial automatic control, base station / computer room monitoring, environmental monitoring, water conservancy project, power industries, agriculture, etc.

Application



Specifications

Core
MCU Cortax M3 32-Bit ARM



Wireless Network
  FDD LTE(4G)
  Default: GSM/GPRS (4 band 850/900/1800/1900Mhz)



Input/Output
Digital input (DI)  12 channels, Dry contact trigger.
Digital output (DO) 4 channels, Transistor output (drive voltage=power supply voltage, Drive current≤500mA.
Analog Input (AI) 4 channels, receive 4-20mA (option: 0-5V), Sampling frequency: 33Hz, 10-bit precision, Dual digital filters for anti-noise.



USB
   configuration Port



Temperature Measurement
Range -30℃～+70℃



COM Ports
Ports 1 x RS-232
Baud Rate 1200 ~ 115200 bps, default 9600
Data Format (N, 8, 1)



Other Interface
SIM/UIM Standard User card Interface
Antenna Standard SMA Female Interface (50ohm)



Power
Input Range 9-28V DC (Standard adapter: DC 12V/1.5A)
Consumption 12V input max. 150mA/Average 50mA



Mechanical
Dimensions (mm) (130 x 80 x 30 mm)
Weight 370g



Environment
Humidity 5～95%(non-condensing).



Description

PRODUCT SERIES     DESCRIPTION    QTY   INQUIRY
 NT-5112  RTU with 12 DI, 4 DO, 4 AI, RS232 Port.            1
