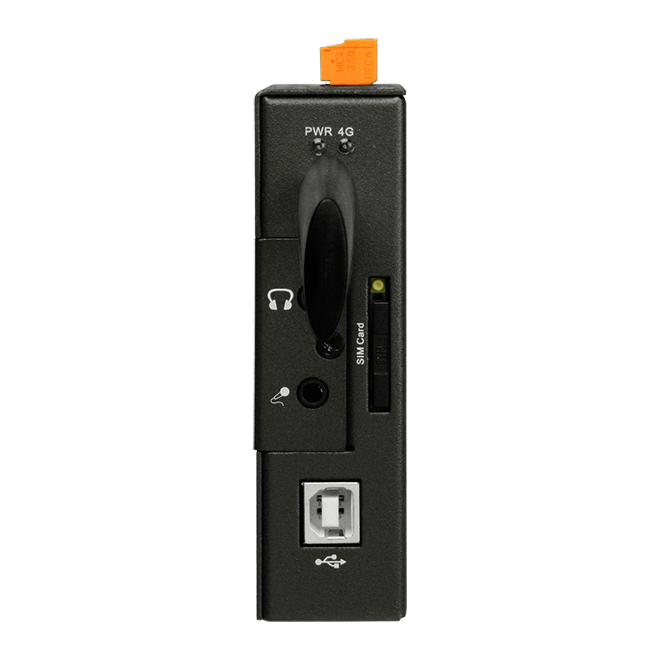

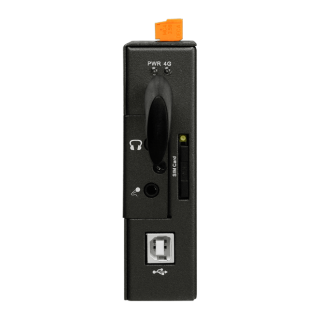

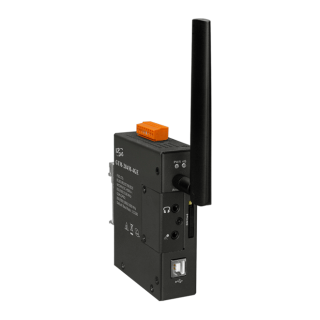

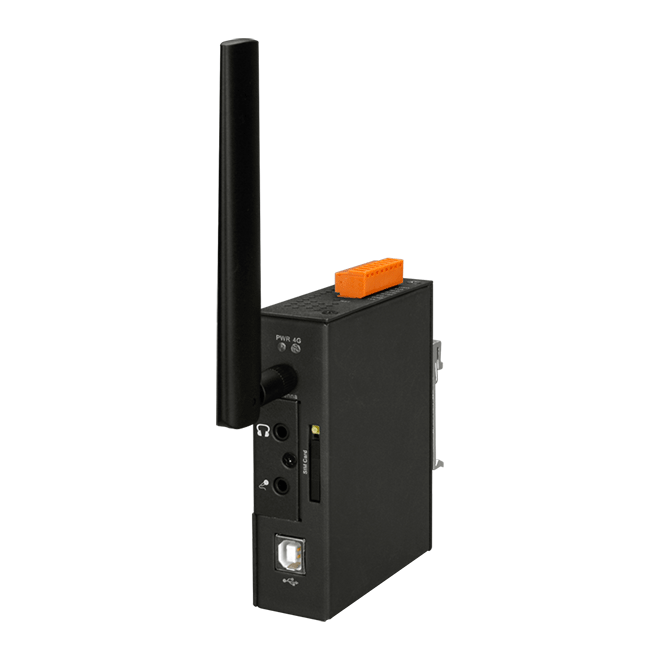

GTM-204M-4GE

  • Industrial design, making it a reliable cellular solution for data collection and transmission.
  • Reliable GSM/GPRS/EDGE/WCDMA/HSPA/LTE network connectivity, providing fast and cost-effective long-range wireless applications.
  • Designed for Data, SMS and Voice Applications.
  • Support TCP Server, TCP Client, UDP Client Connection stack.
  • Support Standard AT Commands.
  • A Digital Input Channel for Resetting the System.
  • LED Indicators for 2G/3G/4G and Power Indication.
  • High Reliability in Harsh Environment.
  • RS-232 Port Supports 9600 bps to 115200 bps.
  • USB 2.0 high speed.
  • Mount Easily on DIN-Rail.

Introduction

The GTM-204M Series is an industrial 4G LTE and Quad-band GSM modem with RS-232 and USB interfaces that work at frequencies of 4G LTE and 3G WCDMA and 2G GSM. The modems utilize the 4G/3G/2G networks to transfer data. The features of the GTM-204M Series allow a variety of PLC and PC applications to take advantage of SMS and 4G/3G/2G connectivity.

Application

Remote Data Monitor and Control.

Water, gas and oil flow metering and schedule.

Power station monitoring and control.

Oil field, weather forecast, environmental protection, street lamp monitoring and control.

Fleet management.

Vending machine.

Vehicle logistics and diagnostics controlling.

Specifications



 LED Indicators
Status 1 x Power
1 x 4G



2G System
Data Transmission Rate GPRS
Downlink transfer: Max. 85.6 kbps
Uplink transfer: Max. 42.8kbps
Frequency Band 850/900/1800/1900 MHz
Coding Schemes CS 1, CS 2, CS 3, CS 4
GPRS Multi-slot GPRS class 12; GPRS station class B
Power Class Class 4 (2 W @ 850/900 MHz)
Class 1 (1 W @ 1800/1900 MHz)
SMS Format Sending: UCS2/7bits
Receiving: UCS2/7bits



3G System
Data Transmission Rate DC-HSPA+
Downlink transfer: Max. 42 Mbps; Uplink transfer: Max. 5.76Mbps
TD-SCDMA Download: Max. 4.2 Mbps; Upload: Max 2.2Mbps
CDMA2000 EVDO Download: Max. 14.7 Mbps; Upload: Max 5.4Mbps
Frequency Band WCDMA 850/900/2100 MHz
Power Class Class 3 (250mW @ WCDMA/HSPA)
SMS Mode MT, MO, CB, Text and PDU mode



4G System
Data Transmission Rate LTE
Downlink transfer: Max. 100 Mbps
Uplink transfer: Max. 50Mbps
Frequency Band FDD LTE: B1/B3/B5/B7/B8/B20



Reset Input
Type Isolated, 3750 Vrms
ON Voltage Level +3.5 VDC ~ +30 VDC
OFF Voltage Level +1 VDC max.T40
Input Impedance 3 kΩ, 0.25W



COM Ports
Ports 1 x RS-232 (RxD, TxD, GND)
Baud Rate 9600 bps ~ 115200 bps (default：115200 bps)



USB
Specification USB 2.0 (high speed)
Driver Windows XP/7/8/10, Windows Server 2012



Mechanical
Casing Metal
Dimensions (mm) 28 x 78.5 x 100 (W x L x H)
Installation DIN-Rail



Environment
Operating Temperature -25℃ to 70℃
Storage Temperature -40℃ to 80℃
Humidity 5~90% RH, non-condensing



Accessories

ANT-421-05
ANT-421-05

Description

 PRODUCT SERIES     DESCRIPTION    QNT   INQUIRY
GTM-204M-4GE CR  Industrial 4G Modem with RS-232 and USB interface. (RoHS) (Asia Only, Except China) 1
