Data Acquisition

M-7019Z-G/S

  • 10 Analog Inputs
  • Provides Stable and Consistent Temperature Output
  • Jumper Selectable Voltage or Current Input
  • High Over-voltage Input Protection
  • High Common Voltage Protection
  • Individual Channel Configuration
  • Open Thermocouple Detection
  • Built-in Dual Watchdog

Introduction

The M-7019Z is a 10-channel universal analog input module with an RS-485 interface that is specially designed for extremely accurate thermocouple measurement and features automatic cold-junction compensation for each channel to ensure temperature output consistency and stable temperature output in the field. The innovative design of the enhanced model ensures that thermocouple measurement is more accurate than with the earlier design.

Besides the thermocouple inputs, The M-7019Z also supports voltage and current inputs. The voltage input range can be from ±15 mV to ±10 V, and the current input range can be either 4 ~ 20 mA, 0 ~ 20 mA, or ± 20 mA. Up to 10 analog inputs of different types can be connected to a single module.The module also provides up to 240 Vrms overvoltage protection and features per-channel open wire detection for the thermocouple and +4 ~ +20 mA input types.

Application

• Building Automation
• Factory Automation
• Machine Automation
• Remote Maintenance
• Remote Diagnosis
• Testing Equipment

Specifications

 CPU Module
 Watchdog Timer Module, Communication (Programmable)



 Isolation
 Intra-module Isolation 3000 VDC



 EMS Protection
 EFT (IEC 61000-4-4) ±4 kV for Power Line
 ESD (IEC 61000-4-2) ±4 kV Contact for Each Terminal



 LED Indicators
 Status 1 x Power and Communication



 Analog Input
 Channels 10 Differential
 Type Voltage
Current
Thermocouple
 Sensor Type Thermocouple: J, K, T, E, R, S, B, N, C, L, M, LDIN43710
Stable and Consisten Temperature Output Yes
 Range Voltage: ±15 mV, ±50 mV, ±100 mV, ±150 mV, ±500 mV, ±1 V, ±2.5 V, ±5 V, ±10 V
Current: ±20 mA, 0 ~ +20 mA, +4 ~ +20 mA (Jumper selectable)
 Resolution 16-bit
 Accuracy ±0.1% of FSR
 Sampling Rate 10 Hz (Total)
 Input Impedance Voltage: 2 MΩ
Current: 125 Ω
Thermocouple: > 400 kΩ
Common Voltage Protection ±200 VDC
Overvoltage Protection 240 Vrms
Individual Channel Configuration Yes
Open Wire Detection For Thermocouple (Software Selectable) and 4 ~ 20 mA



 COM Ports
 Ports 1 x RS-485
 Baud Rate 1200 ~ 115200 bps
 Data Format (N, 8, 1), (N, 8, 2), (E, 8, 1), or (O, 8, 1)
 Protocol Modbus RTU, DCON



 Power
 Reverse Polarity Protection Yes
 Input Range +10 ~ +30 VDC
 Consumption 1.8 W Max.



 Mechanical
 Dimensions (mm) M-7019Z: 73 x 116 x 34 (W x L x H)
DB-1820: 65 x 78 x 22 (W x L x D)
 Installation DIN-Rail Mounting



 Environment
 Operating Temperature -25 ~ +75 °C
 Storage Temperature -40 ~ +85 °C
 Humidity 10 ~ 90% RH, Non-condensing



Accessories

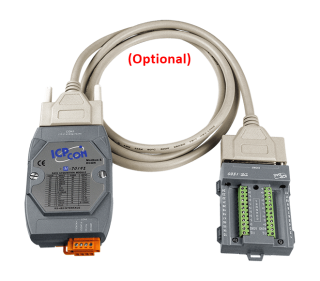

   CD-25015                    CD-2518D

Description

 PRODUCT SERIES     DESCRIPTION    QTY   INQUIRY
 M-7019Z-   G/S     CR  10-ch Universal AI Module using DCON and Modbus Protocols (Gray Cover) (RoHS)

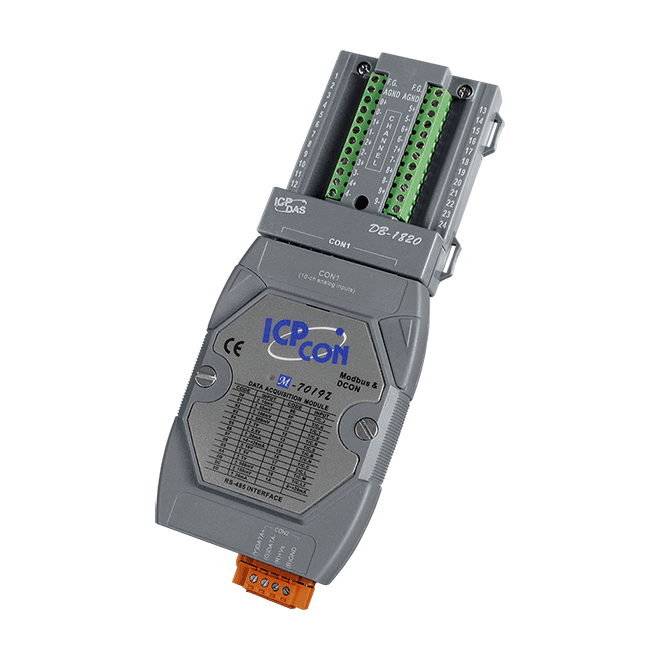

Includes DB-1820 Daughter Board and Plastic DIN Rail (4PAPP-006-G)
